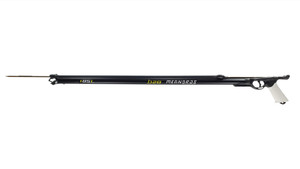

Meandros B28 Open Complete

SKU:
MB28op
Availability:
Ships in 1/2 days
£145.00 - £170.00
(No reviews yet) Write a Review
Current Stock:

The B 28 is a high-quality base speargun of the company’s speargun line.

It has been designed for both beginners and evolving underwater spearos. It is also suggested for the experienced and highly demanding spearos that hunts in coastline, caves and reefs. Particular attention has been paid to all parameters that make up a manufactural quality product that is easy-to-use and offers unprecedented ballistic performance levels. Overcome the problems and weaknesses, such as recoil, deformations, buoyancy and offers long-lasting reliability and excellent operation of all its mechanical parts, etc.

It consists of the international top advanced & ergonomic LEADER handle with a particularly low profile with a non-slip, anatomic grip, loading heel with exceled view shooting image , inverted full inox / heavy duty trigger mechanism with minimal weight and sensitivity. The triggered extends the loading length by +9.5 cm it has an ambidextrous mechanical side line release, reduced friction guide, water balance, ambidextrous monofilament guide, multi-purpose bore, etc.

The multi sided tubular barrel is made of aluminum alloy with an integrated, V-shaped, hydroplating guide, which delivers stiffness with a minimum weight of positive buoyancy of +3.73 gr / cm. Complete anode protection per piece and not per bar. The thickness of the barrel wall parametrically for greater stiffness is uneven (1.00mm -1.5mm depending on the stress point) overcoming the rest of the circular tubes one might find in the market.

Its base can adopt all the reels that we produce.

It is produced in lengths of  75, 85, 95, 105 cm.



• Tube material:      Aeronautical aluminum alloy.
• Tube dimensions:    26.0mm ID & 28.0mm OD.
• Tube cut shape:    Round with supporting extensions / multi sided.
• Wall thickness:     1.0mm - 1.45mm.
• Buoyancy:      +3.73gr / cm.
• Ballasting ability:    Yes.
• Rail type/height:      V type embedded / 16mm from center of pipe.
• Pipe protection:     Anodized.
• Color:     Black mat.
• Handle: Leader B-28.
• Handle profile:    Extremely low.
• Mechanism:    Inverted   inox with plastic trigger, innovative design.
 • Line releasse:    Ambidextrous horizontal.
• Handle adjustment in the pipe:    Male.
• Sealing:    O-ring 18x4.0.
• Grip:    Ambidextrous,anatomic, non-slip, antiallergic, detachable.
• Safety:    Recessed in the trigger guard.
• Loading pad:    Anatomical with excellent line of  sight.
• Muzzle:     Open / id 26.
• Muzzle type:    Open for 2 circular  bands.
• Rubbers:    1 x 17.5mm  tied  circular rubber.
• Wishbone:    Tied / wishbone cord.
• Shaft:     6.25mm / Shark fin / single barb.


Recommended setup

Length tube

Shaft type

 Shaft dimensions

Rubber type

  Rubber dimensions

75 cm Shark fin / single barb 115 cm x 6,25mm Black latex / comando system 17.5mm x 48cm
85 cm Shark fin / single barb 125 cm x 6,25mm Black latex / comando system 17.5mm x 52cm
95 cm Shark fin / single barb 135 cm x 6,25mm Black latex / comando system 17.5mm x 56cm
105 cm Shark fin / single barb 145 cm x 6,25mm Black latex / comando system 17.5mm x 60cm
